An X3D Browser for VR Immersive Simulation Based on Clusters of Commodity Computers.

JINX is a fully distributed virtual environments browser, which has a special support for commodity computer clusters and immersive visualization devices. The presented mechanism intends to be fast and easy to use to develop virtual reality applications based on the X3D format, enabling great flexibility for displays and interaction devices, allowing users to concentrate only on content creation. JINX provides support for nodes synchronization and resources sharing, from Framelock to Datalock. This paper describes the background of the decisions made and the problems that had to be overcome.

Intro

Three-dimensional virtual experiences are important steps in many fields of science and industry, and one of the reasons of their success is the availability of commodity computers with powerful 3D resources. Therefore commodity computer clusters are becoming a feasible solution for immersive visualization systems, since they provide the necessary hardware to support screens synchronization.

The goal of this paper is to present JINX, a tool that allows users to develop distributed virtual reality applications, based on the recent developments in commodity computers clusters. The application development consists of either programming in graphical APIs, like OpenGL routines or, the main focus, writing X3D files. At the moment we support the X3D Interchange profile and we are almost finishing the Interactive profile. Also part of the Immersive profile was already done. JINX was created to be easy to understand and program. Although this solution is focused on commodity clusters, JINX also supports traditional graphical supercomputers, because those are widely available in traditional virtual reality facilities.

The parameters for the physical and virtual environment can be set very quickly. An XML file defines the configuration. XML was chosen because it does not limit neither the semantics nor the tag set, it allows the construction of richly structured documents that can be used over the web, and it is open source. It is also possible to send other kind of data, like images or sound through the network. This simple structure is fully supported and easy to read and change, even in complex situations.

The system is based on modules, therefore the user can increase special support to other capabilities, for instance, visual and audio system resources. This project is intended to be a public domain programming library, running on different Linux distributions and also on IRIX.

This paper is organized as follows: Section 2 presents a background in distributed systems, virtual reality and immersive systems, and also some previous work conducted in this field. Section 3 presents the communication system: from synchronization to data transfer. Section 4 regards the scene graph of X3D. Section 5 explains the modularity of the system. Section 6 presents the navigation and interaction logic. Section 7 explains how to develop an application. Finally section 8 presents some conclusion and future work.


Synchronization

The application presented in this paper allows the user to choose the communication system between the processes. At this moment MPI and TCP/IP sockets network streams are supported. All the information, like the user position, direction and speed is packed and transmitted by networking every frame, since this information is not too big. In a dedicated fast-Ethernet connection it is possible to get a maximum frame rate of about 60 f/s and in a gigabit-Ethernet of about 240 f/s. We chose MPI because it is broadly supported and many network systems support some sort of MPI distribution.

An important feature of the system is the Framelock and Datalock. In the solution proposed, this is done mainly by a barrier function. The Framelock blocks the graphical processes until all of them conclude their own image rendering. When all of them finish their rendering, a command that is issued at the same time in all graphical processes, swaps the frame buffer. Figure 1 shows a system with two displays one synchronized and one not synchronized. The Datalock is basically necessary to guarantee the integrity of the information in the nodes along the process and to avoid coherence problems.

Figure 1 - Image with and without Framelock and Datalock

A suggested intermediate locking is the Timelock, because X3D is animated and based on a specific time, therefore all computer nodes receive a time update at each frame, based on the master clock, and it is possible to predict the animation of the virtual objects, based on this time.

Genlock is also an important resource for distributed environments. In complex cluster-based immersive visual environments, many video signals are necessary to show the images. The Genlock provides controls to synchronize multiple screens, Genlock performs four main functions: vertical, horizontal, frame, and color synchronization and it is necessary in active stereo systems, as the active glasses let you see a different image for each eye on each video refresh. JINX does not provide Genlock, but some graphics cards have a connector for the Genlock signal, which makes it very simple to synchronize the cards. If the graphics card does not support it, another solution is necessary. One of them is Softgenlock, which uses resources of a real time Linux kernel that allows sending synchronization signals across the parallel port.


Connection

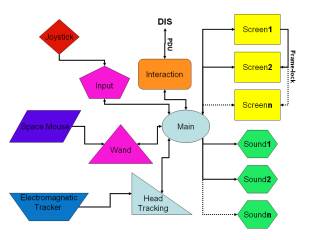

The application developed can run in many processes, which are responsible for different activities. Figure 2 shows how the messages are transmitted across the system. This approach allows the use of heterogeneous clusters or even different architectures for different tasks. For instance the joystick could be connected to a node and the sound card to another one. This allows the use of the cluster with great efficiency.
Figure 2 – Network Connection System Sample

The main process is the one responsible for the communication with the other processes, and for sending synchronization messages and merging the data to a common repository, letting every node know about the state of the system.

There are many processes responsible for input treatment. The input devices supported are: keyboard, mouse, Labtec space mouse, any kind of joystick, Ascension electromagnetic tracker and Intersense head tracking devices. All the information from input devices is treated by the input, wand or head tracking process, filtered, synchronized and sent to the master process, and finally sent to the output processes, like video and sound processes. If there are more than one input devices, it is possible to rate all the device values.

Each input device works in a different way, returning information in different styles. For instance, the tracker sends information in a relative world position. This information has to be managed to fit in the real world. Instead of having the processes reading the devices directly, they can read the data generated by another application that gets the hardware information, calculates the least squares formula, converts the data to the real world coordinates and sends it in an XML stream across the network. In this case the device could be in any computer, outside the system. These messages transferred between the processes should be managed so as not to overflow any other device. The master node should send some messages of acknowledgment to the input device processes to control the quantity of messages transmitted. In the case of using MPI, it buffers the transmitted message, and if it overflows it loses interactivity.

The output devices supported are video and sound. It is possible to use video with the correct stereoscopic view, for many kinds of virtual reality environments, like CAVEs, DisplayWall or Spherical system.

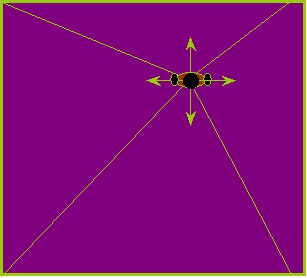

An important feature is the capability to correct the viewpoint of the user, based on a head-tracking system. Usually it uses an electromagnetic tracker for this. The rotation and movement of the eyes should be informed to the computer, allowing it to redisplay the image in a correct perspective. Figure 3 shows how the perspective frustum transforms for an example viewpoint. For stereo the image is similar, but there are two frustums with the source separated by the eye distance.


The sound spacialization is very important; it radically helps the feeling of immersion. For the immersion, sound sources points are defined in the virtual space. Many speakers can be set around the environment or the user can use some headphones. If the user is using headphones, it is necessary to use some tracking system to determine the user position and orientation in the environment. Otherwise each sound connector in each cluster node could control one sound speaker. The sound system is based on the Fmod library. It has the feature to generate 3D sound spacialization, making the user aware of where the sound is coming from.

Tasks distribution

The communication across the processes should be as highly efficient as possible. JINX takes advantage of the SMP systems, that are common nowadays, and high-speed network connections, defining a transparent protocol for communication. Posix threads and MPI were chosen for each respective communication. The processes are deployed to each node of the cluster based on a shell script that internally uses the mpirun command to control which computer will run the application.

SMP systems also use OpenMP for internal loops. Unfortunately it is supported mainly in commercial compilers. The specified communication protocol basically defines the following functions: Send(), Receive(), Barrier(), Acknowledgment(), and some variations. Then based in the dispatch script and the configuration file, showed in Code 1, the program chooses the best way to start the application in each node, which tasks it is responsible and how to communicate with other processes. The dispatch script defines what each node will take care of, like sound, video and input devices. And the configuration file defines how each node works: like screen resolution or speaker’s position. Sometimes one node could have more than one viewport, this is a common case on Irix. In these architectures it is possible to open many viewports in different graphic pipelines.

<jinx>
     <navigation DEF="Navigation" />
     <computer hostname="sgi">
          <device DEF="FOB" dev="/dev/ttyd0" />
     </computer>
     <computer hostname="foo1">
          <device DEF="SpaceBall" dev="/dev/ttyS0" />
          <render>
               <wand DEF="Wand" type="mouse" />
               <window name="front" pipe=":0.0">
                    <view mode="stereo" InterocularDistance="0.007" />
                    <size width="640" height="640" fullscreen="TRUE" />
                    <position x="0" y="0" />
                    <screen dir="0 0 -1" up="0 1 0" />
                    <frustum left="-1.5" right="1.5" bottom="-1.5" top="1.5" depth="1.5" />
                    <center x="0" y="0" z="0" />
                    <head DEF="Head" pos="0 0 0" rot="0 1 0 0" />
                    <mask url="http://foo/mask.png" />
               </window>
          </render>
     </computer>
     <computer hostname="foo2">
          <device DEF="Joy1" dev="/dev/js0" />
          <sound>
               <speaker name="front1" channel="left" pos="2 2 0" />
               <speaker name="front2" channel="right" pos="-2 2 0" />
               <speaker name="headset" channel="headphone" />
          </sound>
     </computer>
     <ROUTE fromNode='FOB' fromField='position'
          toNode='Head' toField='position'/>
     <ROUTE fromNode='FOB' fromField='orientation'
          toNode='Head' toField='orientation'/>
     <ROUTE fromNode='SpaceBall' fromField='position'
          toNode='Wand' toField='position'/>
     <ROUTE fromNode='SpaceBall' fromField='orientation'
          toNode='Wand' toField='orientation'/>
     <ROUTE fromNode='Joy1' fromField='move'
          toNode=' Navigation ' toField='move'/>
     <ROUTE fromNode='Joy1' fromField='rotation'
          toNode='Navigation' toField='rotation'/>
</jinx>

Code 1 – Example of configuration
  As showed in Code 1 each computer configuration is centralized in a common repository. It facilitates the management of the system, allowing the composition of very complex systems. Aside from the fact that the insertion of a new node in the cluster is simple, all executable and configuration code can be read remotely. The specification used in Code 1 was created to support the more common virtual reality infrastructures, and it tries to follow the format of X3D.


Scene graph

The library supports both an OpenGL routine and an X3D code. The X3D system is based on a scene graph and it should be controlled in a smart way. Because of the architecture of C++, it is very simple to simulate each X3D node as an object. The X3D system has some non-linear links. It means that one node connects with another one in a different part of the tree. To solve this, a STL solution was used to create a map that connects the nodes in any order. It also helps the wand interface, the collision between the wand bean and the object is calculated using a ray tracing algorithm that gets the X3D nodes position very fast, making an accurate localization possible.

A XML parser is necessary to parse an X3D file. In this project we use the public parser Xerces. The X3D structure has some points that should be carefully managed, like the waste of memory. Some file lines in an X3D object could have billions of points, represented as floating point numbers. In this case a great quantity of memory is necessary, and this should be dynamically allocated and freed.


Interaction and navigation

There are two control possibilities in a virtual environment: the navigation system and the interaction system. The navigation allows the user to walk, fly or execute other movements inside a virtual world like to move to any viewpoint and to get closer or farther from somewhere. Another possibility is the interaction with the world. This is accomplished with a wand that lets the user point at something and changes some parameter, like the position, or even the color or the shape of an object.

The traditional input devices are the mouse and the keyboard, but these two are not ideal for virtual environments. Usually the mouse works only in 2D and the keyboard is not easy to carry around in a virtual environment like a CAVE or Power Wall. But for simulation environments in a single screen it is strongly recommended, and in this case it should be supported. As many displays are supported, each one has to support a keyboard and a mouse, and has to read and send information to the master process so that the other drawing nodes are informed.

The positional electromagnetic trackers are the most popular input devices for immersive environments. There are wired and wireless models, but the wire usually is not a problem for small motion. The tracker could deliver 6DOF, it is possible to locate the position and the orientation the user’s head to change his/her viewpoint or to change the wand position to detect and select a virtual object. It is just important to remember that the viewpoint can be changed by any movement in the virtual environment and also using the tracking system. But these devices do not fit very well for simulation systems in small areas. In this case the use of a space ball is a better idea. It fits in the same space of a mouse, and it allows the same 6DOF of the tracker.

These devices are usually connected by a RS232 or USB connector, and sometimes these devices are not attached in the simulation computers. In this case it is possible to connect this device in a specific computer and send the information by a network stream, using a protocol in XML specified by the library.


Development of an application

One of our first approaches to create 3D content was to use a conversion tool that generates an OpenGL code from some 3D format, but very soon we concluded that it was not a good way to solve the application data conversion. Then we decided to read directly the 3D file. As VRML is becoming obsolete for the technologies available today, a new programming platform that is promising is the X3D. It is a powerful system, platform independent and open. It is quite possible that many companies start to use X3D for a unified 3D format. There are some missing structures that could be important in this format, but probably they will appear soon. The XML parser is used to read the X3D files. OpenGL is used to render the X3D objects, and the entire scene graph is implemented, following the structure of the X3D model. This X3D file usually stays in a web site, and could be accessed anywhere.

To write an application is quite simple. It is necessary to instance the Engine class, and define the configuration file. Finally you specify an X3D file or an OpenGL routine.


#include "engine.h"
int main(int argc, char* argv[]) {
     Engine* engine = new Engine(&argc,argv);

     engine->Config("http://foo/render.xml");

     engine->X3D("http://foo/exemplo.x3d");
     //engine->OpenGL(&myDrawGLScene);

     engine->run();
     delete engine;
     return(0);
     }

Code 2– Example of program

In the Code 2 figure, you can see that the development of a simple application is very easy. Actually, you can just create an interface for this application and have a program that reads X3D files and displays it in your virtual environment. In the case of using X3D, the program first unpacks the file in a scene graph tree, and starts to render it in each necessary node.


Results

Here, there are a few images produced by the system. Some of them are in a CAVE and others are snapshots of screen images.


Figure 6 – Demo application in the CAVE and Monitor Wall

Figure 6 shows a demo application that uses all the features already implemented. It is possible to see the tracking system work for the 3D wand. This virtual environment was the first one created, used to do tests.

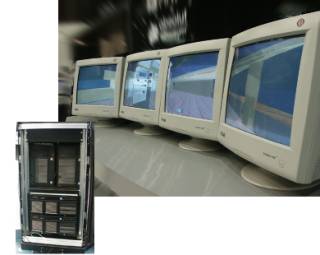

Figure 7 – Snapshot of the house model and linear monitor wall

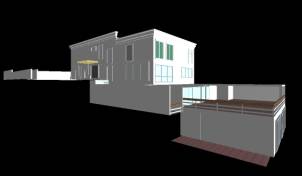

Figure 7 shows a house that was fully modeled using 3D Studio, converted to VRML and then converted to X3D. This is a real house, and has many special characteristics. The last image shows a monitor wall presented at an important conference in Brazil, in this case was used 4 PC computers, each one driving one monitor
Figure 8 – The Escher model

Figure 8 shows a simulation in the CAVE of an Escher drawing . This is a famous drawing that makes some illusions using the perspective feeling. In this application we have 6 PC computers and a SGI computer to produce this simulation. The tracking system, a flock of birds, is attached at the SGI that sends a XML stream with the coordinates to the PC master computers. This computer is responsible to manage all other computers and synthesize the audio. The remaining 5 computers are each one responsible to render the image for each wall.
Figure 9 – Snapshot of hang-gliding over Rio de Janeiro

Figure 9 shows a hang-gliding tour over Rio de Janeiro. It is possible to see many important places, like Corcovado and Sugar Loaf. This example has some sounds in Maracanã, the biggest soccer stadium, and Sambódromo, the carnival parade avenue. Besides the environment plays the song Girls from Ipanema. This example was created with Alias Wavefront Maya and converted to VRML/X3D.
