Wave Onset in Central Gray Matter – Original Image

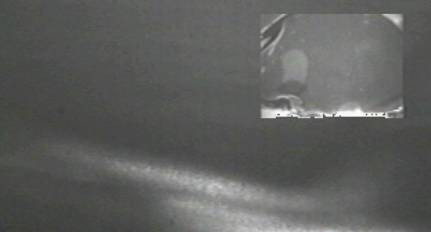

The following figure presents a sample original image got from the sequence captured during the experiment  for depression wave visualization, presented with some enhancement on a prior web page.

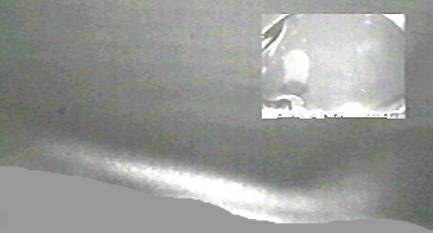

Besides the enhancement, the bottom part that does not pertain to the retina was labeled with a grayish color in order to give a better presentation and interpretation, as shown bellow. Then, the colored marks are added to set some references thus aiding to interpret the changing features of the wave onset and propagation.







The anatomical structures present in the picture correspond to one octant of the chicken eye cut in a region near the pecten.
